Description

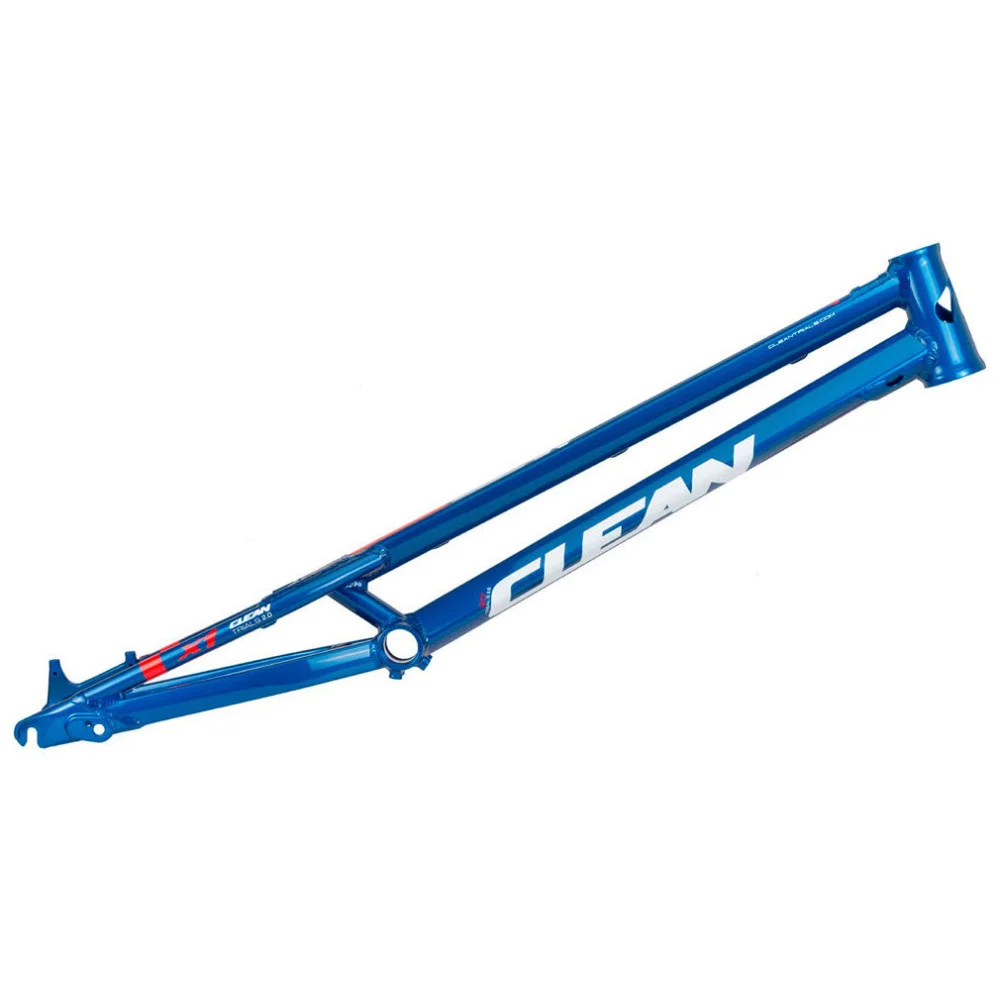

- the frame in the CLEAN X1 V5 is the successor to its predecessor, the CLEAN X1 V4
- the frame is made of high quality 6061 T6 aluminium alloy with CNC parts made of 7075 T6
- tapered head tube for integrated 1-1/8″ – 1.5″ headset
- lower and upper frame tube welded to head tube via brace for added rigidity
- Post-Mount disc brake mount
- PM brake mount is designed for 160mm brake disc without adapter/reducer
- Brake mount and rear dropouts are made from one piece which increases frame strength and durability
- the frame is designed for standard bolt-on hub with 10mm axle (e.g. CLEAN X2 hubs)
- small horseshoe integrated in the rear frame structure for increased strength
- the frame is equipped with 4 screws mount for the CLEAN mini bashplate
- the frame is equipped with small grips for the rear brake hose line
- the frame has vertical dropouts which, combined with the roller chain tensioner, ensures that the rear wheel is always in the ideal position against the brake disc
- the frame is designed for a 68mm BSA bottom bracket with a standard 1.37 „x24tpi thread
Dimensions (measured with 370mm x 40º fork)
- wheelbase: 970mm / 1005mm
- chainstay lenght: 355mm
- BB Rise: +87mm
- headtube angle: 72°
- BB shell width: 68mm (BSA)
- headtube lenght: 120mm
- rear dropouts spacing (for hub) = 116mm
Weight
- 1.520 kg (970mm version) and 1.560 kg (1005mm version)
Frame lenght / rider height
- 970mm frame lenght: ideal for riders up to 1.60m (12-14 years old)
- 1010mm frame lenght: ideal for riders from 1.60m (>14 years old)
Be aware
The frame is supplied without an insert for attaching the tensioner, bashplate or headset. These parts must be purchased separately:
- CLEAN frame insert for chain roller tensioner
- Headset CLEAN | integrated | 1-1/8″ – 1,5″
- CLEAN mini bashplate
