Description

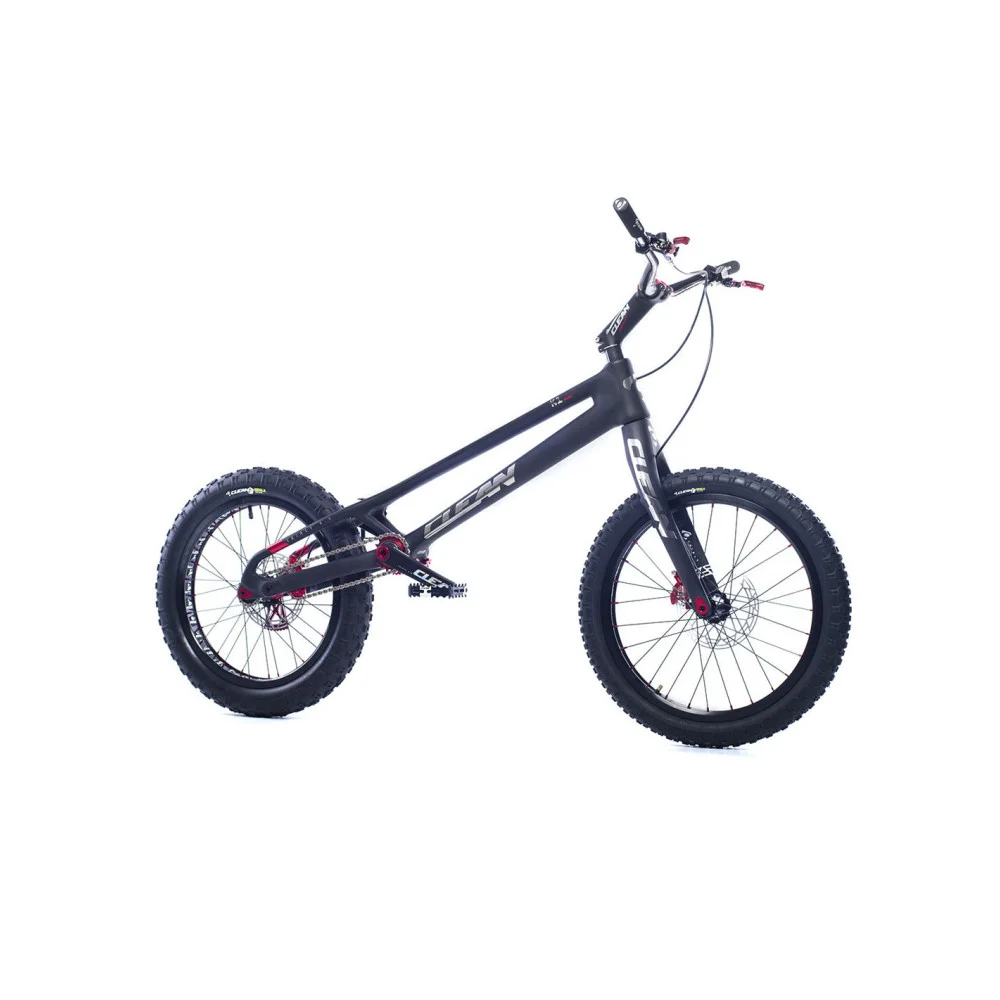

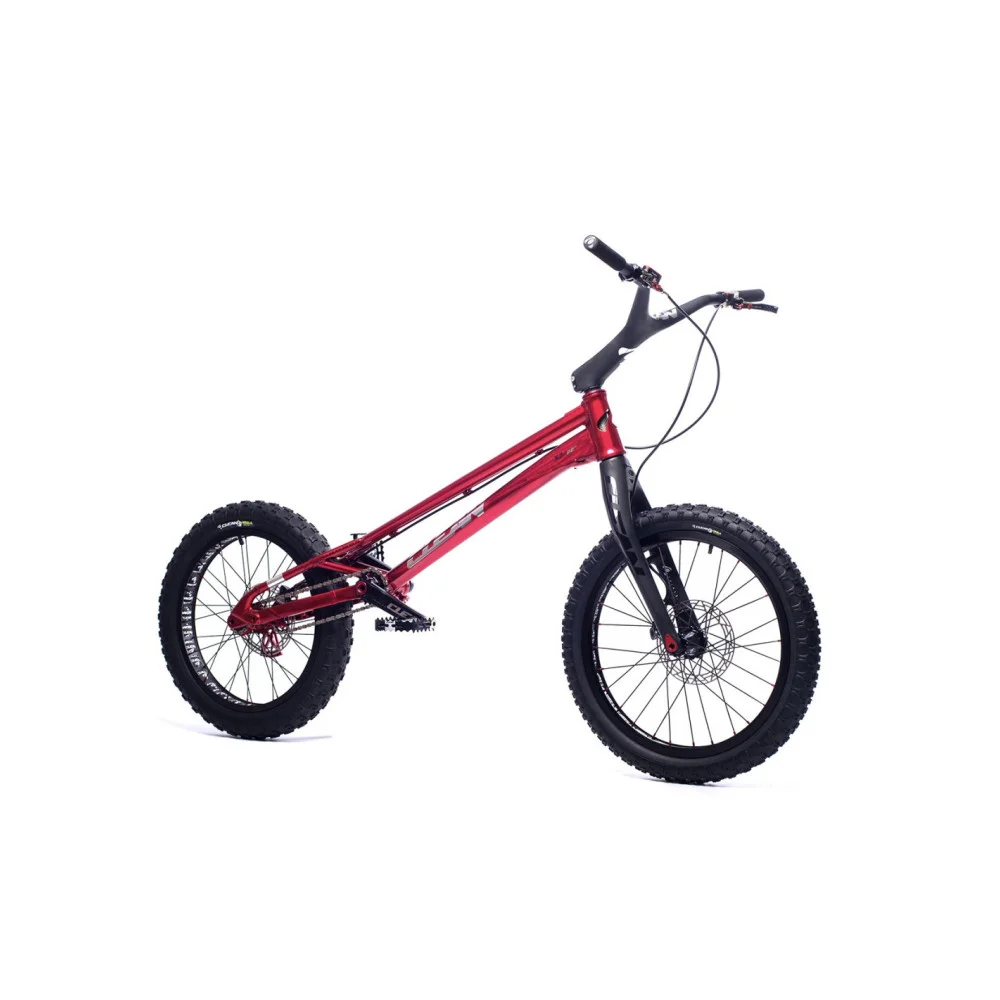

A pro racing 20″ trial bike from CLEAN X3 that is built on experience with previous CLEAN X2 models and long term testing by race riders!
The frame is equipped with disc brake mounts with PM mount hidden inside the rear frame structure. The bike is available with HOPE TECH 4 disc brakes or Trialtech front rim brake + HOPE TECH 4 rear disc brake. We recommend this trials special to all riders who want to enjoy one of the best trials bikes on the market and don’t want to invest in a carbon version.
These are 100% racing components that are very lightweight!
– 12mm rear hub with thru axle
– AS30 bottom bracket and new CLEAN 3P V2 cranks for perfect transmission of every pedal stroke
– integrated pulley tensioner keeps the chain in ideal tension in every situation and reduces chain wear
– tapered head tube with extended bottom diameter to 1.5″
– rear brake seated more into the rear frame structure to cause less stress on the frame tubes
– asymmetrically positioned down frame tube, closer to the gears
– the bike also includes a CLEAN V3 disc protector
– extremely rigid construction!
– CLEAN KOALA trial tyres
Components
Frame: Clean X3
Fork: Clean Carbon / Alu
Handlebars: Clean Carbon / Alu
Grips: Extrafine foam Clean grips
Stem: Clean 155×25 or Combo v2
Headset: Clean Tapered. Superlight integrated
Hubs: Clean X3 12mm Thru Axle. 104mm front, 120mm rear. Optional: Freewheel Hub
Brakes: Trialtech HP / Hope Tech4
Cranks: Clean 3P Crankset. 30mm axle. Press Fit. Full CNC. 160mm.
Pedals: Clean Single Cage.
Chain: KMC X9
Chain tensioner: Integrated Clean. 7075 CNC. Aluminium wheels. 10T.
Rims: Clean PRO
Spokes: Aero
Nipples: Red aluminium 16g
Freewheel: 108.9. 18T. Shimano HG / 18T sprocket in case of freewheel hub
Sprocket: Clean 12T
Front tire: Koala 20”
Rear tire: Koala 19”
Tubes: Clean light
Geometry:
- Wheelbase: 1010mm
- Chainstay lenght: 350mm
- Bottom bracket rise: +87mm
- Headtube angle: 72°
- Headtube lenght: 120mm
Weight:
- will be specified
Further information:
Some pictures may not correspond to the item described, so please read the description carefully.
If you are unsure, please contact us on mail .
